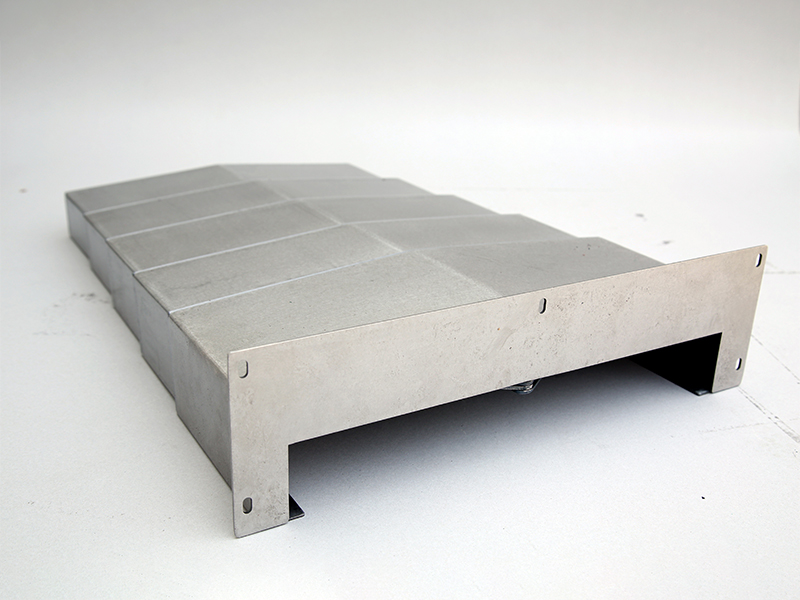

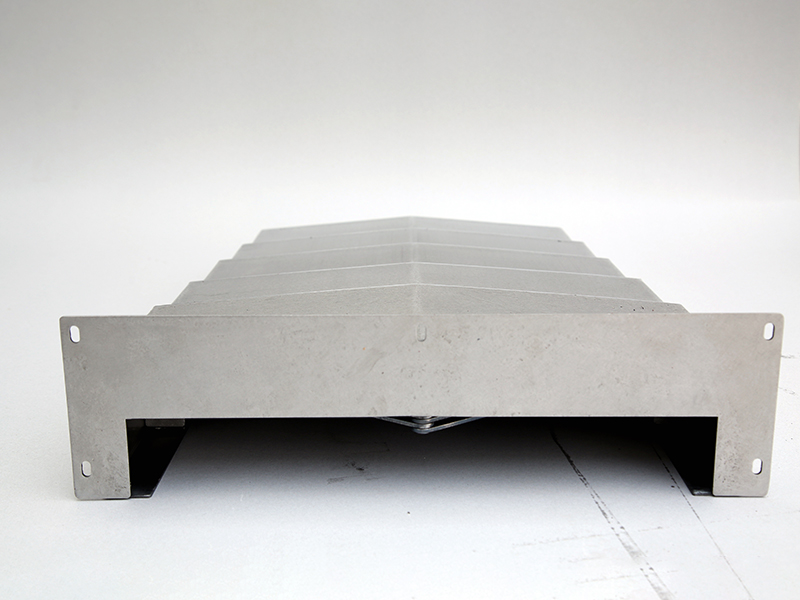

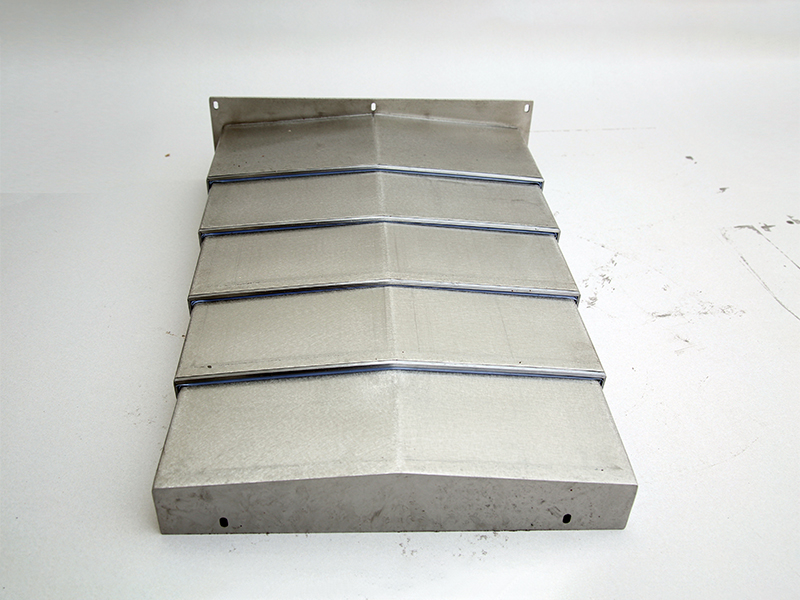

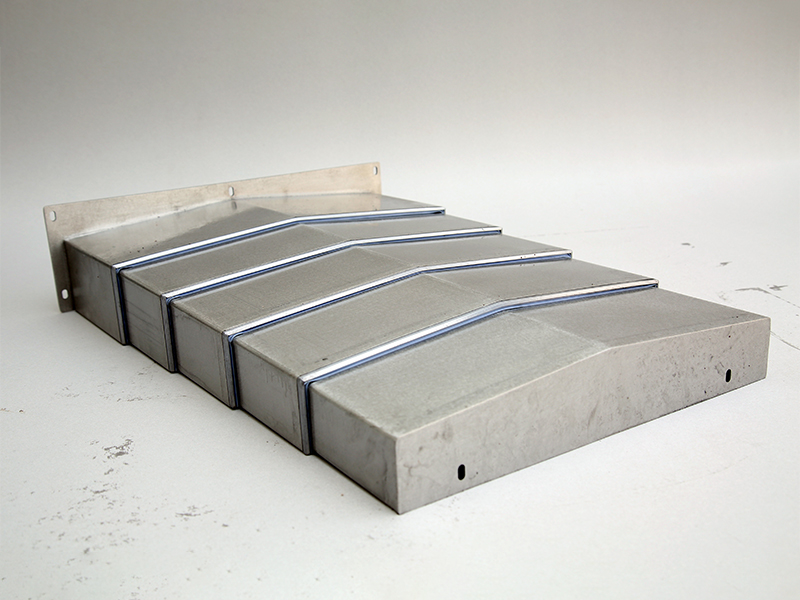

Bed Telescopic Metal Cover is also called sheet metal shield, steel shield can prevent metal chips, coolant, tool accidents, steel shield is durable, stable high-speed operation, longer service life.

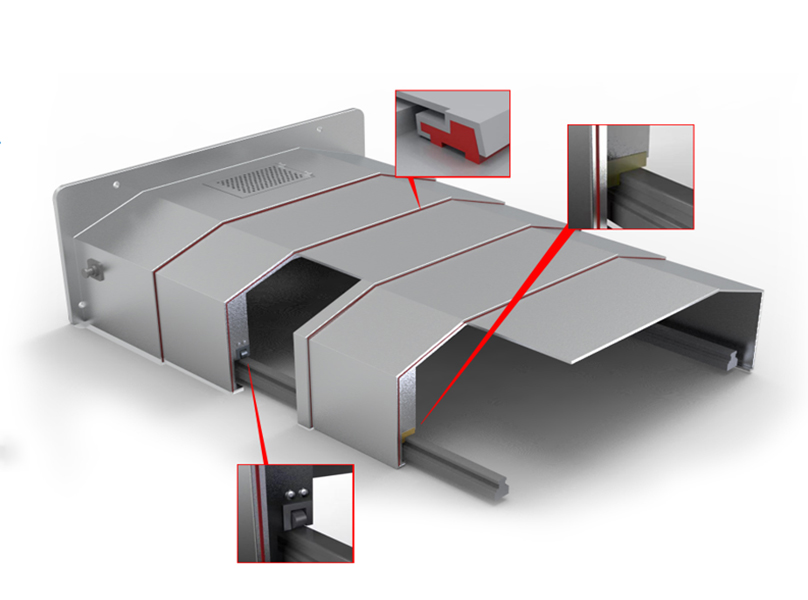

Structure
1. Steel Plate
Carton steel or stainless steel range from 1.5mm to 3mm
2. Guides
Brass,non-metallic,low friction guide shoes
3. Wipers
PU wipers keep th cover clean and seal.
4. Interlock
Ensure individual cover operated precisely.
5. Rollers
To ensure smooth and accurate operation.
6. Scissors
Optional for travel speed≥30m/min.
7. Damping elements
Mainly buffer cushioning,others upon request.
8. Lifting lugs
For ease of installation.
9. Inspection openings
For quick and easy inspection.

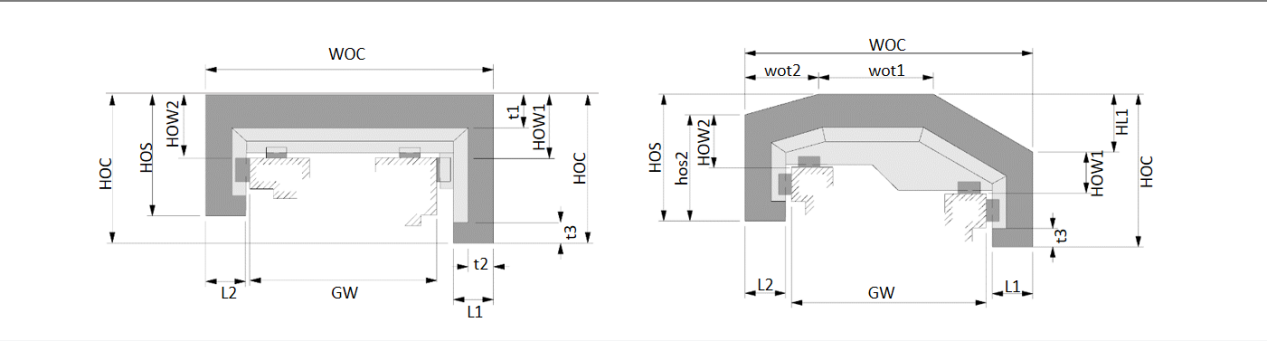

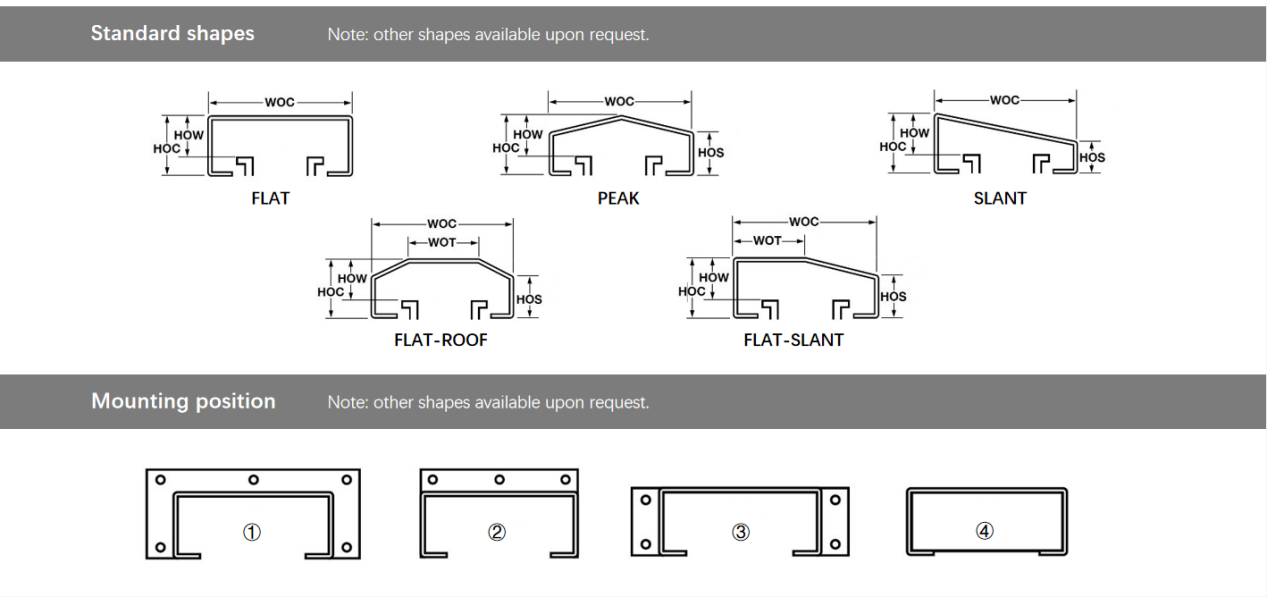

TECHNICAL PARAMETER
WOC = width of cover wot1 = width of cover right 1
HOC = height of cover wot2 = width of cover left 2
WOT = width of top t1 = thickness (width) of top sheet
HOS = height of side t2 = thickness (width) of side sheet
HOW = height over ways t3 = thickness (width) of undergrip sheet
GW = width of guideway L1 = right leg width
HL1 = height over right leg L2 = left leg width
