Machine Covers
OVERVIEW

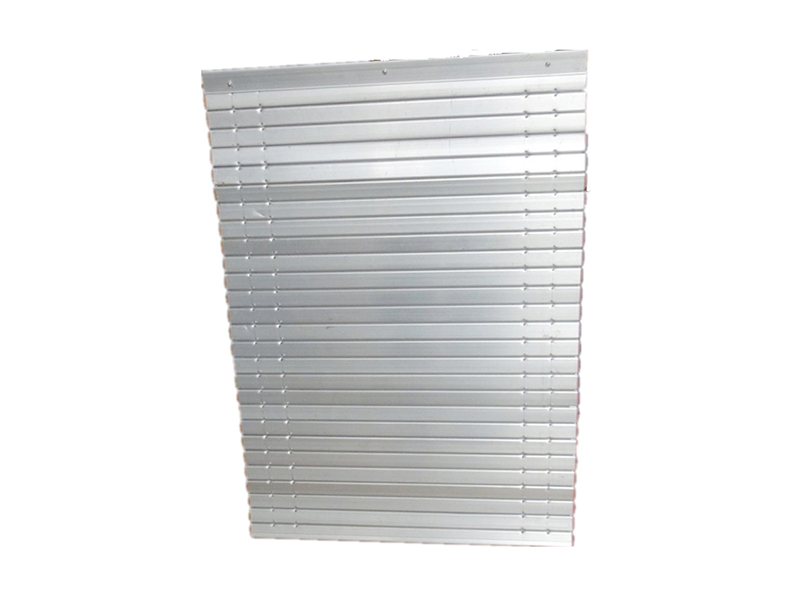

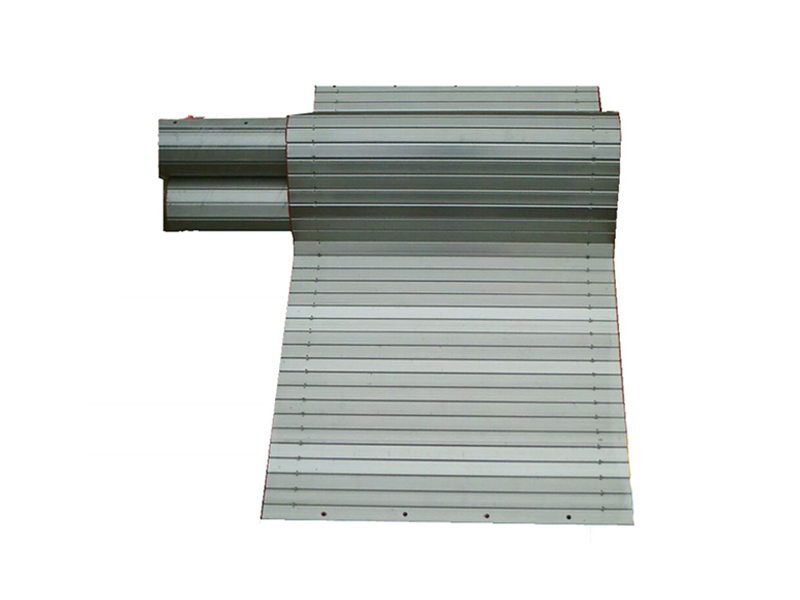

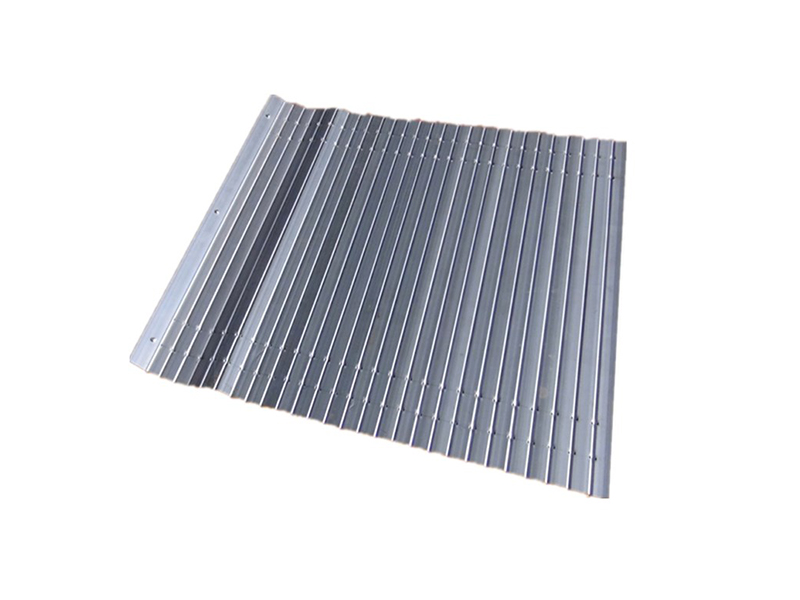

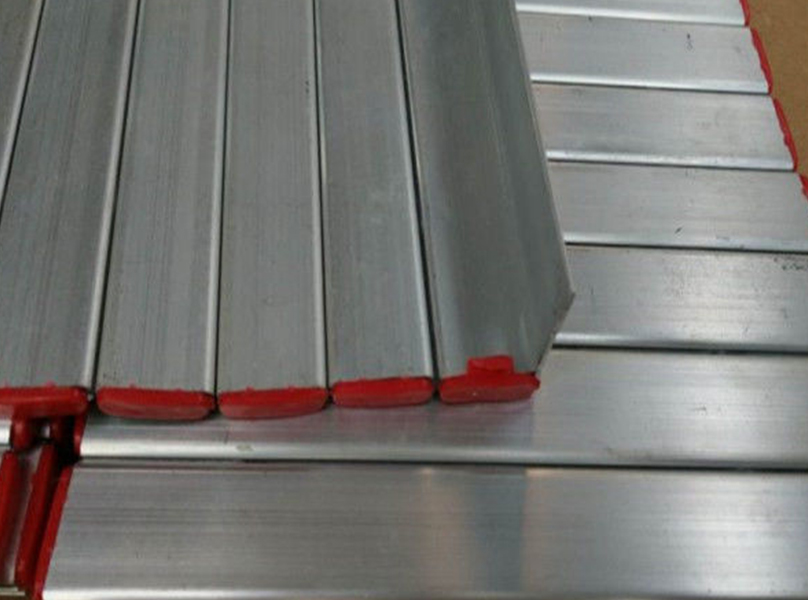

Aluminum Roll-Up Cover, also known as aluminum curtain, is flexible through this simple and effective connection between profiles. There is no need to install guide plate, small size, beautiful appearance, good structural reliability, small space occupation, etc., especially suitable for the use of other protective devices due to space location restrictions. In most cases, the aluminum curtain is used for suspension or easy operation through the steering shaft. Fixed using a metal Angle, tightened at the end of the flexible baffle, connected to the machine. The shape and drilling position can be freely selected by the customer. Aluminum hollow profiles are used, and aluminum oxide is connected with polyurethane. The aluminum pieces are notched to hold them in place. Hollow profile width: 20.5mm height: 5.5mm. The weight per square meter is less than 8KG. The gap between the profile parts is determined according to the maximum protection of polyurethane, which is a high-quality choice for protecting water column flow and debris. Flexible use through this simple and effective connection between profile parts.

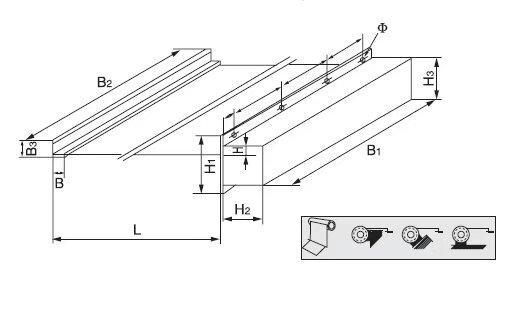

Dimensions
