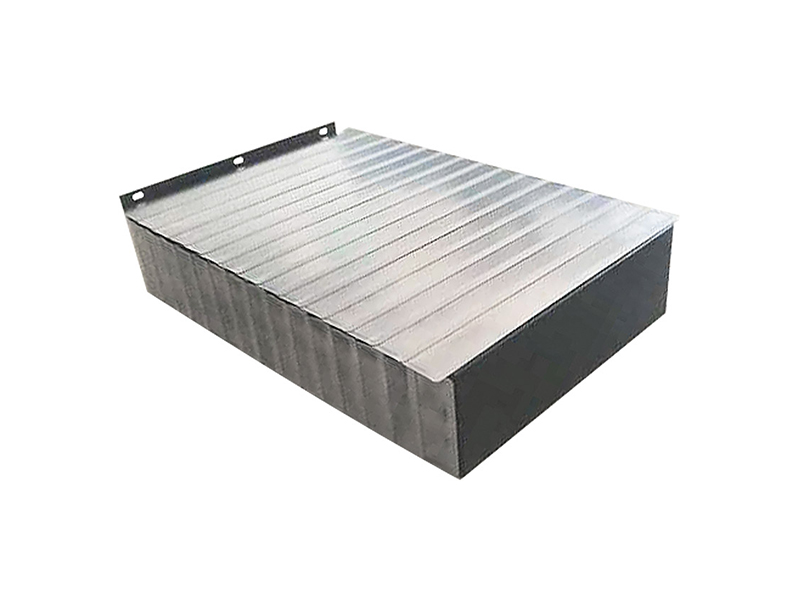

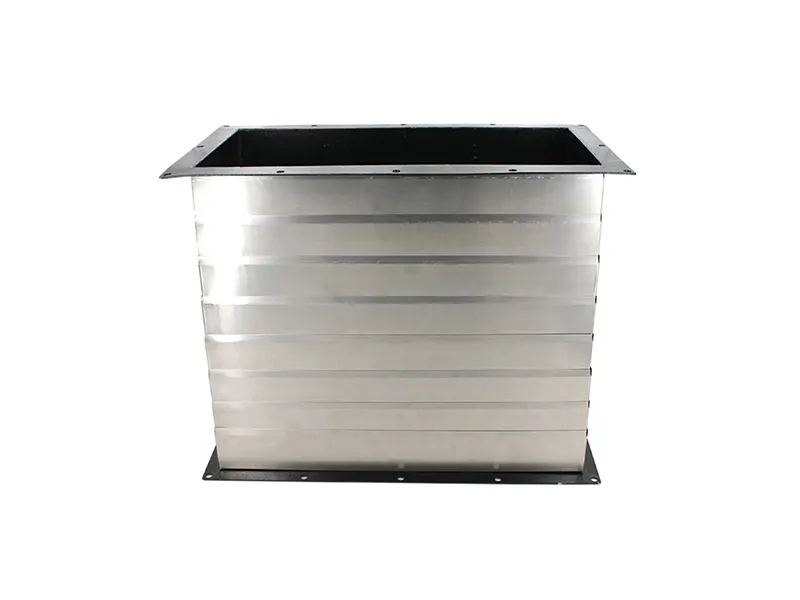

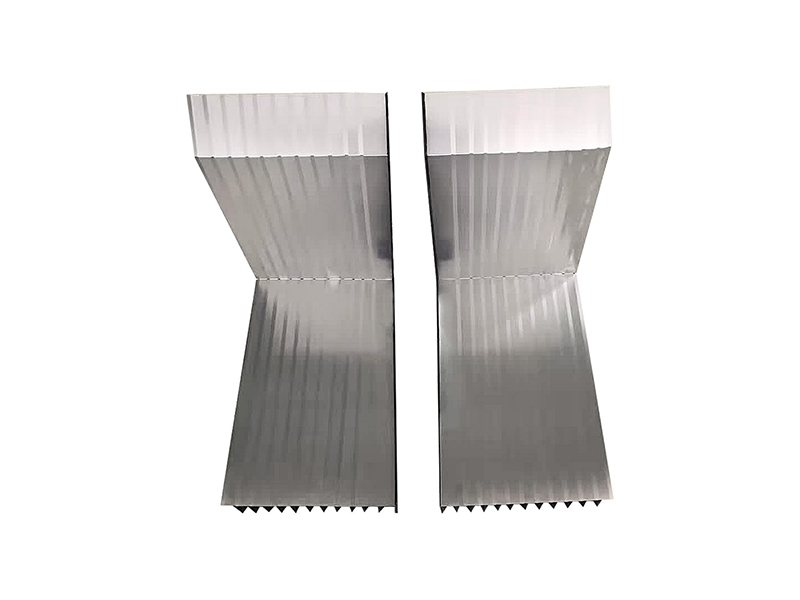

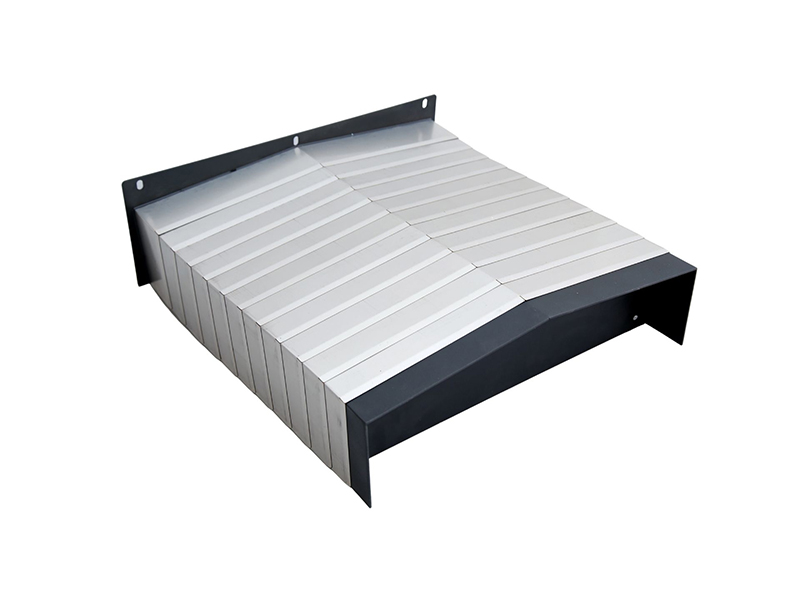

Lamellas
The Overall protection Lamellas Cover is a derivative solution to replace the sheet metal shield in order to meet the customer's smaller compression, lighter operation and more economical product. The multi-sided protective armor shield can have the functions of anti-cutting fluid impact, anti-metal cutting, waterproof, dustproof, oil resistant, acid resistant, alkali resistant, flame retardant, etc., and can be customized according to customer needs.
OVERVIEW

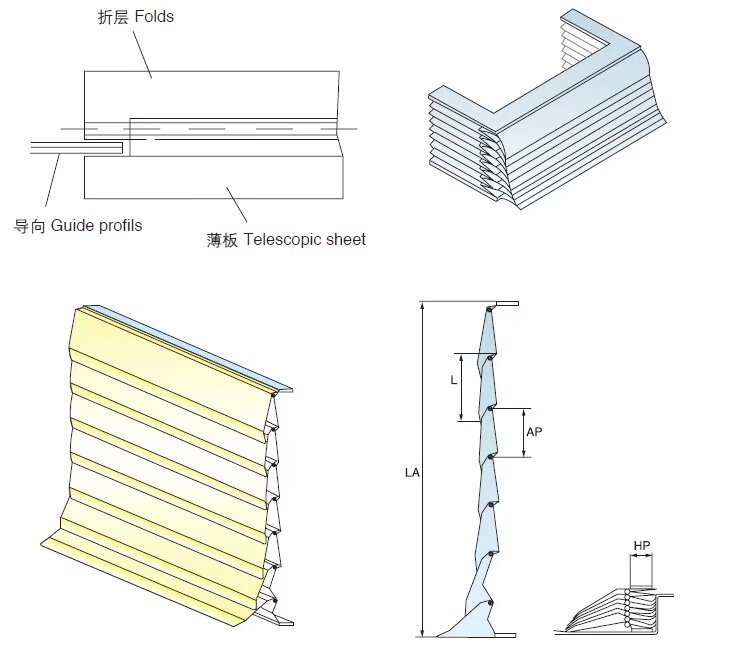

Assembly process:
• Stainless steel lamellas protect bellow, fabric from hot chips, sharp edged swarf.
• Lamellas can be replaced when damaged.
• Low noise and smooth running.
PROOF:
Hot chips I heavy chemical I impact
WORKING TEMPERATURE:
-20℃~50℃ *
SURFACE TEMP. RESISTANCE:
≤90 / min **
MOUNTING:
Flange
SERVICE LIFE:
≥2 years
** High speed modular required for 90m/min higher.
TECHNICAL PARAMETER
