Lamellas

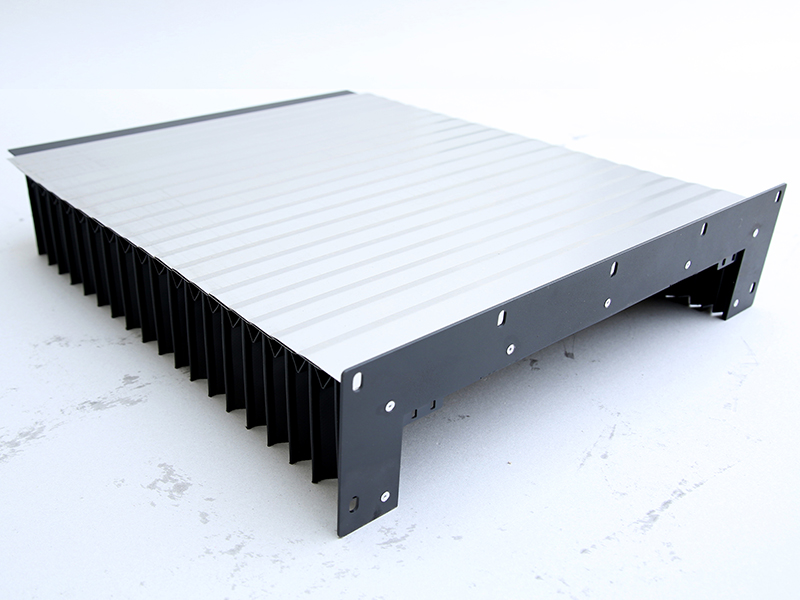

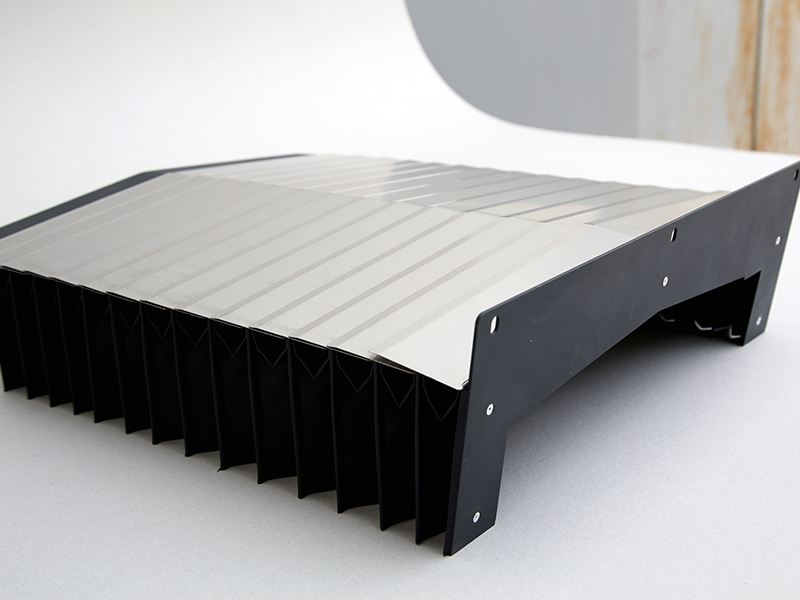

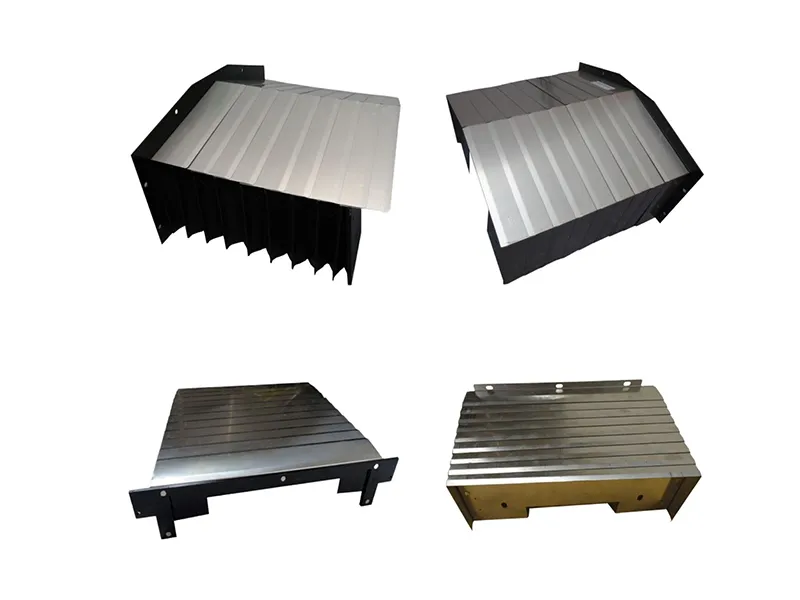

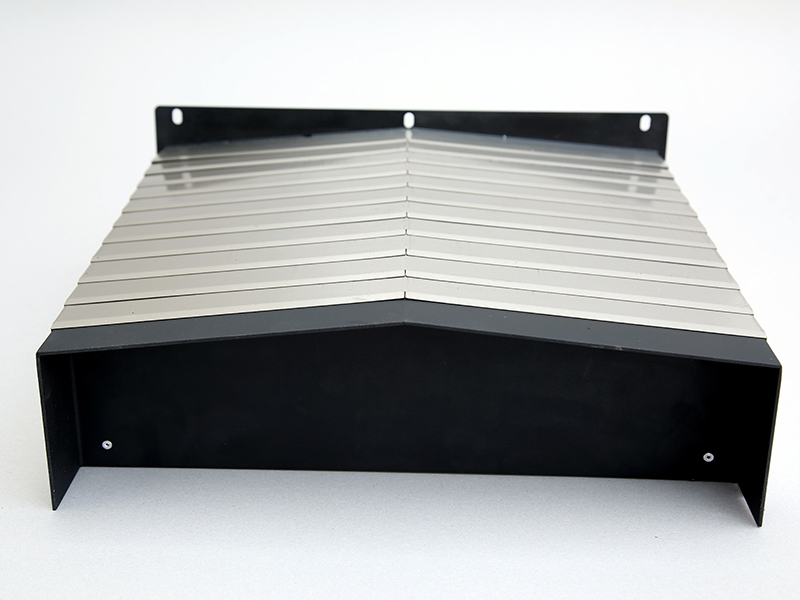

Fixed steel lamella bellows bridge the gap between telescopic steel covers and conventional bellows, combining durability with flexibility. These bellows are based on heat-sealed or stitched designs, with each fold reinforced by its own guide frame securely attached to the cover material. The stainless steel lamellas provide exceptional protection against red-hot debris, sharp-edged swarf, and mechanical strain while maintaining the compression and flexibility of traditional bellows. Designed for demanding industrial environments, our fixed steel lamella bellows can be customized to meet your specific requirements.
The Fixed Lamellars is a solution to satisfy customers with smaller compression, lighter operation and more economical product. The fixed nail shield can be resistant to cutting fluid impact, anti-metal cutting, waterproof, dustproof, oil resistant, acid resistant, alkali resistant, flame retardant and other functions, and can be customized according to customer needs.
OVERVIEW
Hot chips I heavy chemical I impact
WORKING TEMPERATURE:
-20℃~50℃
SURFACE TEMP. RESISTANCE:
≤90 / min
MOUNTING:
Flange
SERVICE LIFE:
≥2 years
High speed modular required for 90m/min higher.
TECHNICAL PARAMETER
| Fold Height (e) | Extensions per Fold FLAT (AZ) | Extensions per Fold FOLDED (AZ) | Width of Lamellas (K) |
| 24 | 27 | 33 | 61 |
| 30 | 39 | 45 | 76 |
| 35 | 49 | 55 | 81 |
| 40 | 59 | 65 | 91 |
| 45 | 69 | 75 | 101 |
FULL FOLD: Allows for full extension of first fold for inside mounting.
EXTERNAL FLANGE: Allows for full extension of the first bellow for outside mounting above the bellows.
