Chip Conveyor
The magnetic force of the strong magnetic field generated by the permanent magnet material is used to adsorb the chips on the working magnetic plate of the chip removal machine, or the iron chips in the oil and the emulsion in the form of particles, powders and the length of ≤100 mm are adsorbed and separated, and transported to the specified chip collecting box.

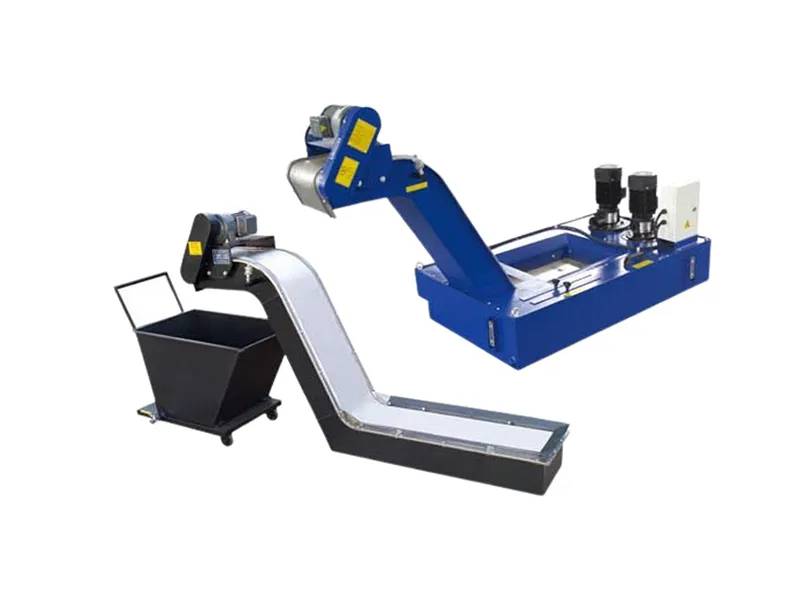

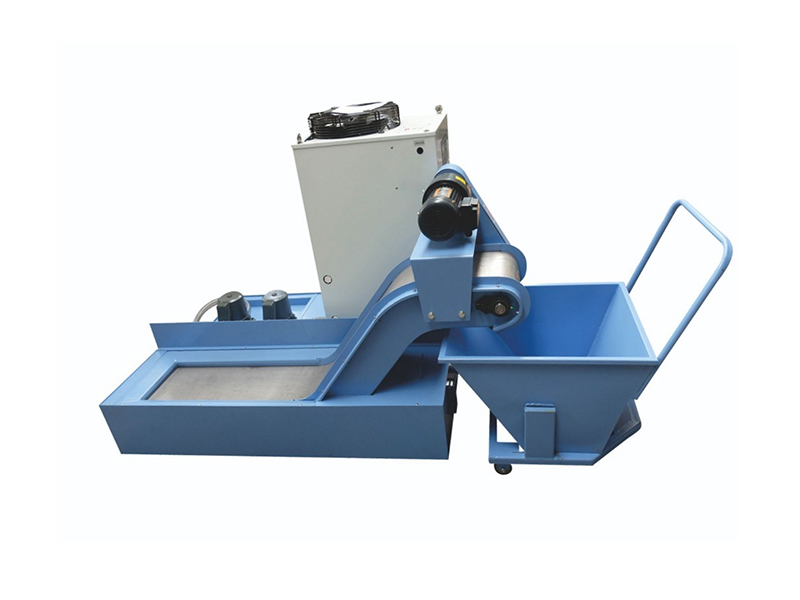

Magnetic Chip Conveyor
The magnetic chip conveyor plays a crucial role in chip management, specifically designed for ferrous material applications that produce small chips, fines, or iron scraps up to 100mm in length. The system effectively separates and removes small debris and fine particles from oil or emulsions, ensuring clean operation. The stationary sheet metal belt works in tandem with powerful magnets rotating underneath, which attract and transport the ferrous chips to a designated chip collection box. Our closed system further enhances efficiency by automatically lubricating all internal parts, eliminating the need for maintenance, oil refills, or manual lubrication of bearings and bushings.
We provide specialized designs tailored for challenging wet fines applications, offering exceptional performance even in environments involving heavy oil and grease. Equipped with rare earth magnets, these systems deliver maximum strength to handle high-volume operations efficiently. Our custom fabrication capabilities cover a wide range of options, including conveyor configurations, leg lengths, incline angles, chain designs, widths, drive system components, optional safety features, and integrated coolant reservoirs.
Ideal for ferrous chips/fine chips, small parts and stampings
Submersible waterproof construction
Fully enclosed with no moving external parts
Special design for difficult wet fine particle applications
Self-adjusting chain tensioner
Heavy-duty stainless steel skids
Transport wet or dry materials at steep angles
Safety/Maintenance Friendly
Minimal maintenance required
Heavy-duty stainless steel top cover/sliding plate
Completely enclosed, no moving parts or belts to replace
Self-adjusting chain tensioner
Carries wet or dry material at a steep angle
Submersible waterproof construction
Machine Tool Chip Removal
Parts Handling
Stamping
Scrap Handling
Sawing
